jWiard 基于JQuery的强大的向导控件介绍

  我就不贴我现在做项目的代码,我直接把作者的示例搬过来,因为改动不大,只要做点修改,就能很好的满足我们自己的需求。

  原文地址 猛点这里下载

  作者官网   不过是英文的,英语好的话 可以看原文,生怕我表达错误。

  不知道童鞋们在平时的开发用到用向导式开发这种方式没有?有人问 什么是向导式开发呢?其实,很简单,就是让用户完成一个步骤,然后点击下一步,完成一个步骤就点击下一步,这样 按照我师父的来说,可以很好的提升用户体验。

  OK,废话不说了,先来一个最简单的例子:

  例子1:

  1.1当然咯,既然是JQuery 就少不了需要引用JQuery库吧。在上面就能下到相关的类库。

  JQuery Class and Style



复制代码 代码如下:

  <!-- jquery ui theme -->

  <link rel="stylesheet" href="/path/to/jquery-ui.css" />

  <!-- required CSS basics -->

  <link rel="stylesheet" href="/path/to/jWizard.base.css" />

  <!-- duh -->

  <script type="text/javascript" src="/path/to/jquery.js"></script>

  <!-- at least the widget factory -->

  <script type="text/javascript" src="/path/to/jquery-ui.js"></script>

  <!-- and the plugin itself -->

  <script type="text/javascript" src="/path/to/jWizard.min.js"></script>

  1.2 然后就开始写 HTML代码了,也很简单。

  HTML Code



复制代码 代码如下:

  <form id="wizard-form" class="jWizard">

  <fieldset>

  <legend>Beginning</legend>

  <p>Are you sure you want to begin? Press "Next" to proceed?</p>

  </fieldset>

  <fieldset>

  <legend>Middle</legend>

  <p>Are you sure you want to?</p>

  <p>You can still go back. Or press "Next" again to confirm.</p>

  </fieldset>

  <fieldset>

  <legend>End</legend>

  <p>Done, click "Finish" to end</p>

  </fieldset>

  </form>

  <!-- Can also just be divs with title attributes -->

  <div id="wizard-div" class="jWizard">

  <div title="Beginning">

  <p>Are you sure you want to begin? Press "Next" to proceed?</p>

  </div>

  <div title="Middle">

  <p>Are you sure you want to?</p>

  <p>You can still go back. Or press "Next" again to confirm.</p>

  </div>

  <div title="End">

  <p>Done, click "Finish" to end</p>

  </div>

  </div>

  你可以在上面的HTML代码了 进行添加相关的div,不过 可别忘记了给最外面的赋上title值哦。

  1.3 js开始调用。

  JS Call



复制代码 代码如下:

  $(".jWizard").jWizard({

  menuEnable: true,

  counter: {

  enable: true,

  progressbar: true

  },

  effects: { enable: true }

  });

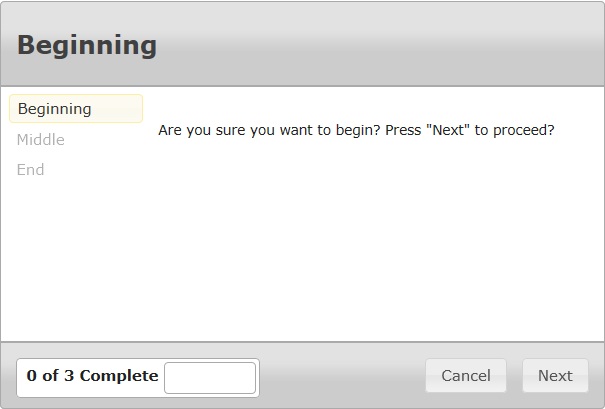

  OK, 到此为止,上面的基本步骤就实现了,效果如下:



jWiard 基于JQuery的强大的向导控件介绍

  示例 2:给next添加事件

  在我现在做的第一个版本里,刚开始比如有上传文件,验证文件等等操作,很二的直接在页面放了一个button,然后触发它的javascript代码。这样做可以满足基本功能的需求,可是也非常严重的损害了用户的体验。因为,现在的用户非常的懒,能少做一点事情,它是绝对不会多做的。所以,如果你放一个button,用户不想去点击,然后就点击next了,那么就得不到需要的用户,就会报错。

  因此,我们可以把一些操作都集成到Next中去,那这样子就灰常灰常的方便了,而且页面也变的灰常灰常的整洁大方。

  其余代码可以基本不变,现在我主要讲一下js里面的事件机制,代码如下:



复制代码 代码如下:

  var $w = $("#events-test");

  $w.validate({ errorClass: "ui-state-error-text" });

  $w

  .jWizard({

  buttons: {

  cancelType: "reset", // 点击”Cancel“按钮的时候 触发的动作,比如我在项目中,是跳到第一页 重新开始。

  finishType: "submit" // 在最后一步点击”finish“的时候,出发的动作,也就是提交。

  },

  // 点击”Cancel“按钮的时候 触发的动作,比如我在项目中,是跳到第一页 重新开始。

  cancel: function(event, ui) {

  $w.jWizard("firstStep");

  },      // 点击previous的时候触发的动作。比如在我项目中,因为当把所有的邮件都发送完毕的时候,就不能让用户上一页了,所以我要把上一页的功能给进禁止掉。很简单,如下;

  previous: function(event, ui) {

  // if(ui.currentStepIndex==7){return false;} 就可以了。7 指的是你的div的顺序数字,从0开始,哈这个会数吧。

  },

  next: function(event, ui) {

  // 这里同理哦,就是控制下一页的情况,也是上面一样。比如,在我项目中,有一个上传数据的,要是没有就不能让它上传。这种情况 你可以先设定一个bool值,然后,

  if(fileUploadComplete){ $.get("@Url.Action("VerificationSchema", "Home")", // 这里学习MVC的童鞋们应该很熟悉 其实也就是在action home 下面的方法 VerificationSchema function (data) { // 获取成功后返回的数据 var newData = eval(data); // 因为用的json 所以用eval 进行转换 schemaVerification=newData.HasErrors; if(newData.HasErrors) { var listing1 = document.getElementById("listing1"); listing1.innerHTML = "<font color='red' size='20px'>Congruations.Please go on.</font>"; } else { document.getElementById("ErrorNotification").innerHTML="Sorry.Your Schema wrong,please check it."; var listing1 = document.getElementById("listing1"); listing1.innerHTML = newData.Result; } },"json");} else { //这里主要是当没有选择数据的时候 进行提示 alert("Please firstly Upload the Excel File you need"); return false; } break; },

  finish: function(event, ui) {

  alert("Thank you!");

  }

  })

  /** The bindings below are event handlers, they will all be executed before proceeding to the callback */

  /** ui = {

  type: "previous|next|first|last|manual",

  currentStepIndex: [int],

  nextStepIndex: [int]

  }; */

  // This event handler is specifically used for form validation

  .bind("jwizardchangestep", function (event, ui) {

  // "manual" is always triggered by the user, never jWizard itself

  if (ui.type !== "manual") {

  var $currentStep = $w.find(".jw-step:eq(" + ui.currentStepIndex + ")"),

  $inputs = $currentStep.find("input:text");

  /** I am assuming you have `jquery.validate.js` running in this callback */

  if ($inputs.length > 0 && !$inputs.valid()) {

  $currentStep.find("label.error").effect("highlight");

  return false;

  }

  }

  })

  // This event handler is for handling custom navigation through the wizard

  .bind("jwizardchangestep", function (event, ui) {

  // "manual" is always triggered by the user, never jWizard itself

  if (ui.type !== "manual") {

  // 这里其实是比较重要的,因为这里就是选择对应div的实现方式的,你只需要把相应模块的javascript代码集成到这里就可以了。

  switch (ui.currentStepIndex) {

  // on the first step, the user must agree to the terms and conditions

  case 0:

  if ($("#agree").is(":not(:checked)")) {

  // use this effect to give the user feedback

  $("#agree").parent().effect("pulsate");

  return false;

  }

  break;

  // on the 3rd step, (zero-index) the username being filled means we are skipping the openid step

  case 2:

  if ($("#username").val() != "") {

  // by setting this value on the event object, I am telling jWizard to override the nextStepIndex

  event.nextStepIndex = 4;

  // you must at least call event.preventDefault(); in order for this to work

  return false;

  }

  break;

  }

  }

  // by using nextStepIndex, we can intercept the user when they are *about to start* on a particular step

  switch (ui.nextStepIndex) {

  // in this case, I am displaying a summary on the last step of the wizard

  case 4:

  var oFormValues = {

  name: $("#name").val(),

  email: $("#email").val(),

  username: $("#username").val(),

  openid: undefined

  };

  $("#summary-name").children("td").text(oFormValues.name);

  $("#summary-email").children("td").text(oFormValues.email);

  if (oFormValues.username != "") {

  $("#summary-username").show().children("td").text(oFormValues.username);

  $("#summary-openid").hide().children("td").text("");

  } else {

  var $openid = $w.find("input:radio:checked[name=openid]");

  oFormValues.openid = ($openid.length === 1) ? $openid.val() : $("#openid-other").val();

  $("#summary-username").hide().children("td").text("");

  $("#summary-openid").show().children("td").text(oFormValues.openid);

  }

  break;

  }

  });

  // if the user clicks the openid link on step 3, (zero-index) cause the wizard to jump to the openid step

  $("#openid").click(function () {

  $w.jWizard("changeStep", 3);

  return false;

  });

  // if an openid radio button is checked, blank out the `other` textbox

  $w.find("input:radio[name=openid]").change(function (event) {

  $("#openid-other").val("");

  });

  // if the `other` openid textbox is used, blank out the radio buttons

  $("#openid-other").change(function (event) {

  if (this.value != "") {

  $w.find("input:radio[name=openid]").removeAttr("checked");

  }

  });

  sum,我的搜狗怎么突然就没有用了。

  算了 以上就是我的一点点经验,就不说了,吃饭时间到了,如果有需要的童鞋在做开发的时候,如果遇到问题,可以进行共同讨论,呵呵 共同进步嘛。



  具体效果在这里 。
