使用FlexiGrid实现Extjs表格效果方法分享
近一段时间Extjs真的是风光无限好，只要是个做CRM/HRM之类的企业现在都在琢磨怎么在项目中用它，不过兄弟我可是不敢，原因很简单：太大/太笨/源码不好调试。但是对于Extjs漂亮的表格与功能的强大，实在是让我垂涎三尺，记得以前有个老外同志写过一个类似的Extjs的Jquery插件，所以就在Jquery的插件海洋中一顿海找，呵呵，还真让我找到了。看来还是我的Jquery好，小巧简单好像一部好的汽车引擎，我想要什么就可以自已DIY，真是方便。总体方案在网络传输上不超过80KB，速度比500KB大小的Extjs不知道要小上多少哪。。。

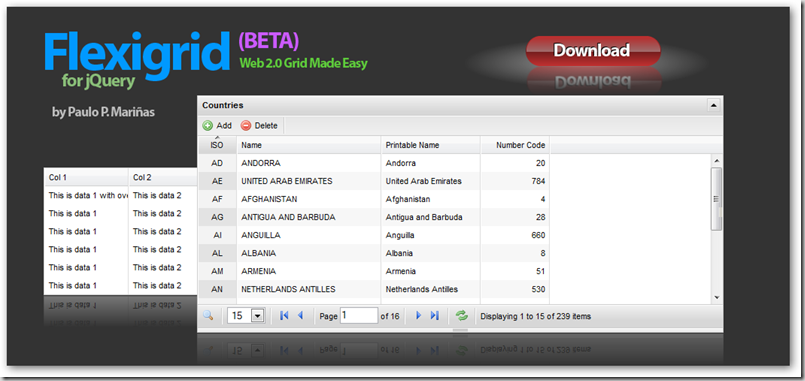

下载地址：http://code.google.com/p/flexigrid/
不过由于FlexiGrid在互联网上的大部分资料都是用PHP或者java写的，所以兄弟简单的对它进行了改制，也做了一个山寨版的Extjs表格实现，希望对大家有帮助。
基本使用：
1 基本使用是非常简单的，只需要加入Jquery库与FlexiGrid的JS即可以对表格进行格式化与美化.
<link rel="stylesheet" type="text/css" href="css/flexigrid/flexigrid.css">
<script type="text/javascript" src="lib/jquery/jquery-1.2.6.min.js"></script>
<script type="text/javascript" src="flexigrid.pack.js"></script>
<%--<script type="text/javascript" src="lib/jquery/jquery-1.2.6-vsdoc-cn.js"></script>--%>
<script type="text/javascript">
$("document").ready(function() {
$('#flexme1').flexigrid();
$('#flexme2').flexigrid();
});
</script>

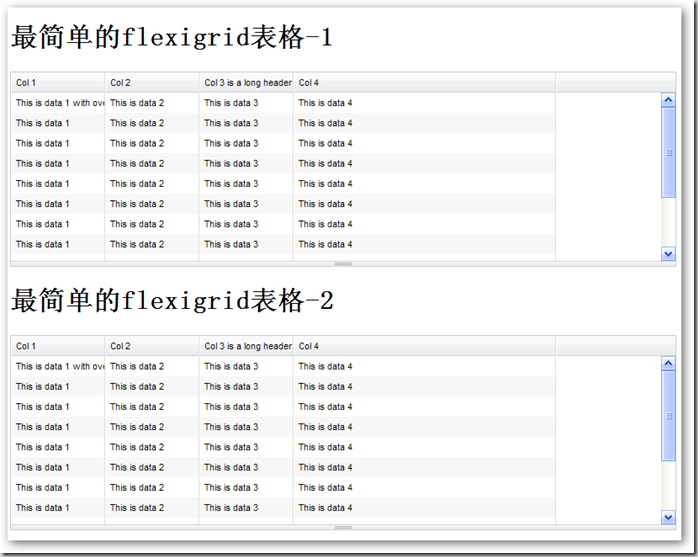

2 加入需要格式化的表格即可
<h1>
最简单的flexigrid表格-1</h1>
<table id="flexme1">
<thead>
<tr>
<th width="100">
Col 1
</th>
<th width="100">
Col 2
</th>
<th width="100">
Col 3 is a long header name
</th>
<th width="300">
Col 4
</th>
</tr>
</thead>
<tbody>
<tr>
<td>
This is data 1 with overflowing content
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
</tbody>
</table>
<p>
</p>
<h1>
最简单的flexigrid表格-2</h1>
<table id="flexme2">
<thead>
<tr>
<th width="100">
Col 1
</th>
<th width="100">
Col 2
</th>
<th width="100">
Col 3 is a long header name
</th>
<th width="300">
Col 4
</th>
</tr>
</thead>
<tbody>
<tr>
<td>
This is data 1 with overflowing content
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
<tr>
<td>
This is data 1
</td>
<td>
This is data 2
</td>
<td>
This is data 3
</td>
<td>
This is data 4
</td>
</tr>
</tbody>
</table>
为了增加FlexiGrid的基本使用效果，我们可以通过参数对其进行基本的调整

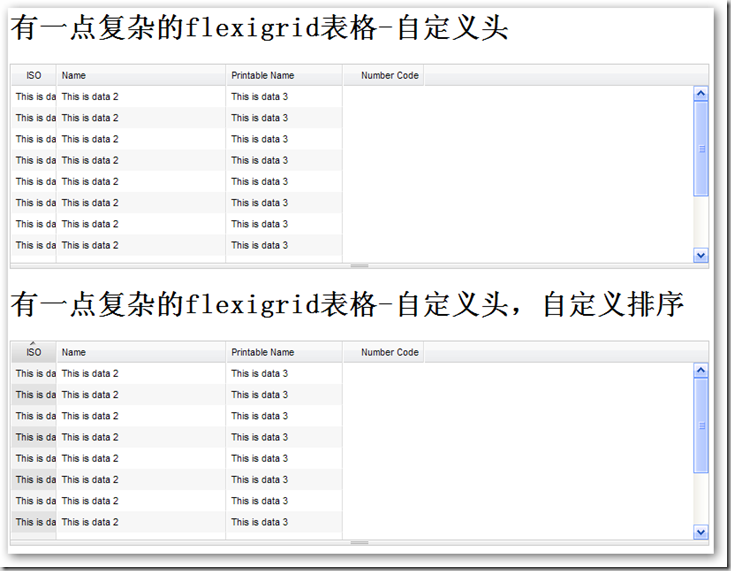

自定义表头
具体代码实现：
<script type="text/javascript">
$("document").ready(function() {
$('#flexme1').flexigrid({
colModel: [
{ display: 'ISO', name: 'iso', width: 40, sortable: true, align: 'center' },
{ display: 'Name', name: 'name', width: 180, sortable: true, align: 'left' },
{ display: 'Printable Name', name: 'printable_name', width: 120, sortable: true, align: 'left' },
{ display: 'ISO3', name: 'iso3', width: 130, sortable: true, align: 'left', hide: true },
{ display: 'Number Code', name: 'numcode', width: 80, sortable: true, align: 'right' }
]
});
$('#flexme2').flexigrid({
colModel: [
{ display: 'ISO', name: 'iso', width: 40, sortable: true, align: 'center' },
{ display: 'Name', name: 'name', width: 180, sortable: true, align: 'left' },
{ display: 'Printable Name', name: 'printable_name', width: 120, sortable: true, align: 'left' },
{ display: 'ISO3', name: 'iso3', width: 130, sortable: true, align: 'left', hide: true },
{ display: 'Number Code', name: 'numcode', width: 80, sortable: true, align: 'right' }
],
sortname: "iso",
sortorder: "asc",
});
});
</script>

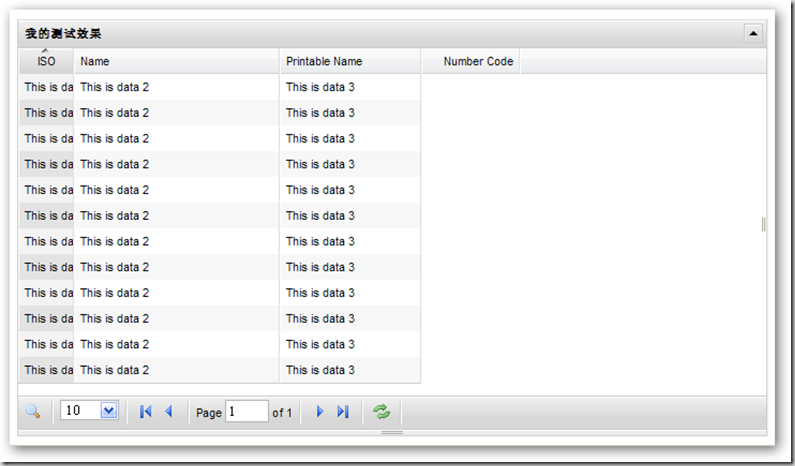

自定义折叠，自定义排序的实现
<script type="text/javascript">
$("document").ready(function() {
$('#flexme1').flexigrid({
colModel: [
{ display: 'ISO', name: 'iso', width: 40, sortable: true, align: 'center' },
{ display: 'Name', name: 'name', width: 180, sortable: true, align: 'left' },
{ display: 'Printable Name', name: 'printable_name', width: 120, sortable: true, align: 'left' },
{ display: 'ISO3', name: 'iso3', width: 130, sortable: true, align: 'left', hide: true },
{ display: 'Number Code', name: 'numcode', width: 80, sortable: true, align: 'right' }
], width: 700, height: 300, usepager: true, showTableToggleBtn: true, title: "点我折叠"
});
$('#flexme2').flexigrid({
colModel: [
{ display: 'ISO', name: 'iso', width: 40, sortable: true, align: 'center' },
{ display: 'Name', name: 'name', width: 180, sortable: true, align: 'left' },
{ display: 'Printable Name', name: 'printable_name', width: 120, sortable: true, align: 'left' },
{ display: 'ISO3', name: 'iso3', width: 130, sortable: true, align: 'left', hide: true },
{ display: 'Number Code', name: 'numcode', width: 80, sortable: true, align: 'right' }
],
searchitems: [
{ display: 'ISO', name: 'iso' },
{ display: 'Name', name: 'name', isdefault: true }
],
sortname: "iso",
sortorder: "asc",
title: "我的测试效果",
width: 700,
height: 300,
usepager: true, showTableToggleBtn: true, rp: 10
});
});
</script>
高级使用：
1 分页用到的存储过程
Create PROCEDURE [dbo].[spAll_ReturnRows]
(
@SQL nVARCHAR(4000),
@Page int,
@RecsPerPage int,
@ID VARCHAR(255),
@Sort VARCHAR(255)
)
AS
DECLARE @Str nVARCHAR(4000)
SET @Str='SELECT TOP '+
CAST(@RecsPerPage AS VARCHAR(20))+
' * FROM ('+@SQL+') T WHERE T.'+
@ID+
' NOT IN (SELECT TOP '+
CAST((@RecsPerPage*(@Page-1)) AS VARCHAR(20))+
' '+
@ID+
' FROM ('
') T9 ORDER BY '+
@Sort+
') ORDER BY '+
@Sort
PRINT @Str
EXEC sp_ExecuteSql @Str

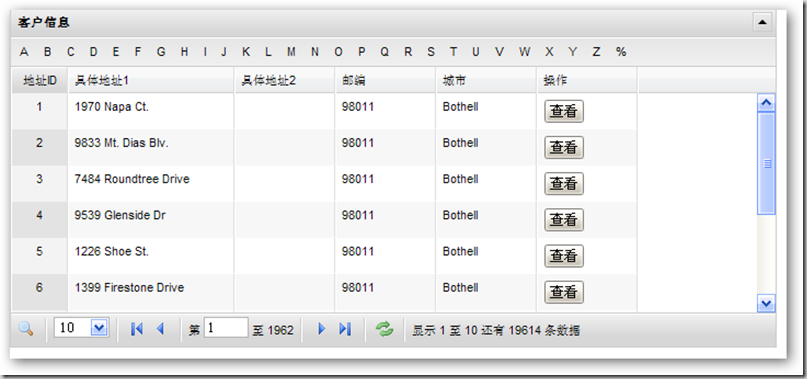

2 异步JSON数据传输实现
using System;
using System.Collections.Generic;
using System.Configuration;
using System.Data;
using System.Data.SqlClient;
using System.Linq;
using System.Text;
using System.Web;
using System.Web.Services;
using Newtonsoft.Json;
namespace GridDemo
{
/// <summary>
/// $codebehindclassname$ 的摘要说明
/// </summary>
[WebService(Namespace = "http://tempuri.org/")]
[WebServiceBinding(ConformsTo = WsiProfiles.BasicProfile1_1)]
public class GetDataSource4 : IHttpHandler
{
public void ProcessRequest(HttpContext context)
{
context.Response.ContentType = "text/plain";
//得到当前页
string CurrentPage = context.Request["page"];
//得到每页显示多少
string PageShowLimit = context.Request["rp"];
//得到主键
string TableID = context.Request["sortname"];
//得到排序方法
string OrderMethod = context.Request["sortorder"];
//得到要过滤的字段
string FilterField = context.Request["qtype"];
//得到要过滤的内容
string FilterFieldContext;
if (context.Request.Form["letter_pressed"] == null)
{
FilterFieldContext = "";
}
else
{
FilterFieldContext = context.Request["letter_pressed"];
}
//得到表的总行数
string TableRowCount = SqlHelper.ExecuteScalar(ConfigurationManager.AppSettings["SQL2"],
CommandType.Text,
"select count(*) from Person.Address"
).ToString();
//得到主SQL
SqlParameter SQL = new SqlParameter("@SQL", SqlDbType.NVarChar);
//SQL.Value = "SELECT * FROM Person.Address";
if (FilterFieldContext.Length == 0 || FilterField.Length == 0)
{
SQL.Value = "SELECT AddressID,AddressLine1,AddressLine2,PostalCode,City FROM Person.Address";
}
else
{
string[] tmp = FilterField.Split(',');
SQL.Value = "SELECT AddressID,AddressLine1,AddressLine2,PostalCode,City FROM Person.Address where " + tmp[0] + " like '" + FilterFieldContext + "%'";
}
SqlParameter Page = new SqlParameter("@Page", SqlDbType.Int);
Page.Value = Convert.ToInt32(CurrentPage);
SqlParameter RecsPerPage = new SqlParameter("@RecsPerPage", SqlDbType.Int);
RecsPerPage.Value = Convert.ToInt32(PageShowLimit);
SqlParameter ID = new SqlParameter("@ID", SqlDbType.VarChar);
ID.Value = TableID;
SqlParameter Sort = new SqlParameter("@Sort", SqlDbType.VarChar);
Sort.Value = TableID;
//得到表
DataTable returnTable = SqlHelper.ExecuteDataset(ConfigurationManager.AppSettings["SQL2"],
CommandType.StoredProcedure, "spAll_ReturnRows",
new SqlParameter[]
{
SQL,Page,RecsPerPage,ID,Sort
}).Tables[0];
context.Response.Write(DtToSON2(returnTable, CurrentPage, TableRowCount));
}
/// <summary>
/// JSON格式转换
/// </summary>
/// <param name="dt">DataTable表</param>
/// <param name="page">当前页</param>
/// <param name="total">总计多少行</param>
/// <returns></returns>
public static string DtToSON2(DataTable dt, string page, string total)
{
StringBuilder jsonString = new StringBuilder();
jsonString.AppendLine("{");
jsonString.AppendFormat("page: {0},\n", page);
jsonString.AppendFormat("total: {0},\n", total);
jsonString.AppendLine("rows: [");
for (int i = 0; i < dt.Rows.Count; i++)
{
jsonString.Append("{");
jsonString.AppendFormat("id:'{0}',cell:[", dt.Rows[i][0].ToString());
for (int j = 0; j < dt.Columns.Count; j++)
{
if (j == dt.Columns.Count - 1)
{
jsonString.AppendFormat("'{0}'", dt.Rows[i][j].ToString());
}
else
{
jsonString.AppendFormat("'{0}',", dt.Rows[i][j].ToString());
}
if (j == dt.Columns.Count - 1)
{
jsonString.AppendFormat(",'{0}'", "<input type=\"button\" value=\"查看\" id=\"sss\" onclick=\"sss(" + dt.Rows[i][0].ToString() + ")\" />");
}
}
jsonString.Append("]");
if (i == dt.Rows.Count - 1)
{
jsonString.AppendLine("}");
}
else
{
jsonString.AppendLine("},");
}
}
jsonString.Append("]");
jsonString.AppendLine("}");
return jsonString.ToString();
}
public bool IsReusable
{
get
{
return false;
}
}
}
}
3 页面实现
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Complex-8.aspx.cs" Inherits="GridDemo.Complex_8" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
<link rel="stylesheet" type="text/css" href="/css/flexigrid/flexigrid.css" />
<script type="text/javascript" src="/lib/jquery/jquery.js"></script>
<script type="text/javascript" src="flexigrid.js"></script>
<link type="text/css" rel="Stylesheet" href="facebox/facebox.css" />
<link type="text/css" rel="Stylesheet" href="body.css" />
<script type="text/javascript" src="facebox/facebox.js"></script>
<script type="text/javascript">
$("document").ready(function() {
$("#flex1").flexigrid
({
url: 'GetDataSource4.ashx',
dataType: 'json',
colModel: [
{ display: '地址ID', name: 'AddressID', width: 40, sortable: true, align: 'center' },
{ display: '具体地址1', name: 'AddressLine1', width: 140, sortable: true, align: 'left' },
{ display: '具体地址2', name: 'AddressLine2', width: 80, sortable: true, align: 'left' },
{ display: '邮编', name: 'PostalCode', width: 80, sortable: true, align: 'left' },
{ display: '城市', name: 'City', width: 80, sortable: true, align: 'left' },
{ display: '操作', name: 'Opt', width: 80, sortable: true, align: 'left' }
],
buttons: [
{ name: 'A', onpress: sortAlpha },
{ name: 'B', onpress: sortAlpha },
{ name: 'C', onpress: sortAlpha },
{ name: 'D', onpress: sortAlpha },
{ name: 'E', onpress: sortAlpha },
{ name: 'F', onpress: sortAlpha },
{ name: 'G', onpress: sortAlpha },
{ name: 'H', onpress: sortAlpha },
{ name: 'I', onpress: sortAlpha },
{ name: 'J', onpress: sortAlpha },
{ name: 'K', onpress: sortAlpha },
{ name: 'L', onpress: sortAlpha },
{ name: 'M', onpress: sortAlpha },
{ name: 'N', onpress: sortAlpha },
{ name: 'O', onpress: sortAlpha },
{ name: 'P', onpress: sortAlpha },
{ name: 'Q', onpress: sortAlpha },
{ name: 'R', onpress: sortAlpha },
{ name: 'S', onpress: sortAlpha },
{ name: 'T', onpress: sortAlpha },
{ name: 'U', onpress: sortAlpha },
{ name: 'V', onpress: sortAlpha },
{ name: 'W', onpress: sortAlpha },
{ name: 'X', onpress: sortAlpha },
{ name: 'Y', onpress: sortAlpha },
{ name: 'Z', onpress: sortAlpha },
{ name: '%', onpress: sortAlpha }
],
searchitems: [
{ display: '城市', name: 'City' , isdefault: true},
{ display: '邮编', name: 'PostalCode' }
],
usepager: true,
title: '客户信息',
useRp: true,
rp: 10,
showTableToggleBtn: true,
width: 700,
height: 200,
rpOptions: [10, 15, 20, 25, 40, 60], //可选择设定的每页结果数
procmsg: '请等待数据正在加载中 …', //正在处理的提示信息
resizable: false, //是否可伸缩
sortname: "AddressID",
//sortorder: "asc",//此列由于存储过程原因无法用
});
});
function sortAlpha(com) {
jQuery('#flex1').flexOptions({ newp: 1, params: [{ name: 'letter_pressed', value: com }, { name: 'qtype', value: $('select[name=qtype]').val()}] });
jQuery("#flex1").flexReload();
}
function sss(data)
{
var temp=eval(data);
// jQuery.facebox(temp);
jQuery.facebox({ ajax: 'Default.aspx?id='+temp })
}
</script>
</head>
<body>
<table>
</table>
</body>
</html>
