浅谈VS中的DataPager分页

  微软的DataPager分页功能很强大,不要设置数据库存储过程,只要添加个DataPager控件,关联下要分页的控件,简单设置就可以有不错的分页效果。当然要有更理想的效果还是要前台和后台处理下。

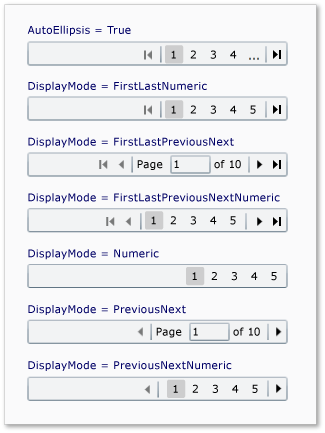

  winform下的DataPager 显示模式:

浅谈VS中的DataPager分页

  webForm下的样式由TemplatePagerField,NextPreviousPagerField和NumericPagerField控制

  通过设置上面几个控件的配合也可以达到winForm下的效果,这3个控件中最重要的是TemplatePagerField控件。

  下面简单看看TemplatePagerField控件可以怎么设置:



复制代码 代码如下:

  <%@ Page language="VB" %>

  <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"

  "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

  <script runat="server">

  Protected Sub TemplatePagerField_OnPagerCommand(ByVal sender As Object, _

  ByVal e As DataPagerCommandEventArgs)

  ' Check which button raised the event

  Select Case e.CommandName

  Case "Next"

  Dim newIndex As Integer = e.Item.Pager.StartRowIndex + e.Item.Pager.PageSize

  If newIndex <= e.TotalRowCount Then

  e.NewStartRowIndex = newIndex

  e.NewMaximumRows = e.Item.Pager.MaximumRows

  End If

  Case "Previous"

  e.NewStartRowIndex = e.Item.Pager.StartRowIndex - e.Item.Pager.PageSize

  e.NewMaximumRows = e.Item.Pager.MaximumRows

  Case "First"

  e.NewStartRowIndex = 0

  e.NewMaximumRows = e.Item.Pager.MaximumRows

  End Select

  End Sub

  </script>

  <html xmlns="http://www.w3.org/1999/xhtml" >

  <head id="Head1" runat="server">

  <title>TemplatePagerField.OnPagerCommand Example</title>

  <style type="text/css">

  body

  {

  text-align: center;

  font: 12px Arial, Helvetica, sans-serif;

  }

  .item

  {

  border: solid 1px #2F4F4F;

  background: #E6E6FA;

  }

  </style>

  </head>

  <body>

  <form id="form1" runat="server">

  <h3>TemplatePagerField.OnPagerCommand Example</h3>

  <asp:ListView ID="StoresListView"

  DataSourceID="StoresDataSource"

  runat="server">

  <LayoutTemplate>

  <table width="350" runat="server" id="tblStore">

  <tr runat="server">

  <th runat="server">ID</th>

  <th runat="server">Store Name</th>

  </tr>

  <tr id="itemPlaceholder" runat="server">

  </tr>

  </table>

  </LayoutTemplate>

  <ItemTemplate>

  <tr runat="server">

  <td class="item">

  <asp:Label ID="IDLabel" runat="server" Text='<%#Eval("CustomerID") %>' />

  </td>

  <td align="left" class="item">

  <asp:Label ID="NameLabel" runat="server" Text='<%#Eval("Name")%>' />

  </td>

  </tr>

  </ItemTemplate>

  </asp:ListView>

  <br />

  <asp:DataPager runat="server"

  ID="ContactsDataPager"

  PageSize="30"

  PagedControlID="StoresListView">

  <Fields>

  <asp:TemplatePagerField OnPagerCommand="TemplatePagerField_OnPagerCommand">

  <PagerTemplate>

  <asp:LinkButton ID="FirstButton" runat="server" CommandName="First"

  Text="<<" Enabled='<%# Container.StartRowIndex > 0 %>' />

  <asp:LinkButton ID="PreviousButton" runat="server" CommandName="Previous"

  Text='<%# (Container.StartRowIndex - Container.PageSize + 1) & " - " & (Container.StartRowIndex) %>'

  Visible='<%# Container.StartRowIndex > 0 %>' />

  <asp:Label ID="CurrentPageLabel" runat="server"

  Text='<%# (Container.StartRowIndex + 1) & "-" & (IIf(Container.StartRowIndex + Container.PageSize > Container.TotalRowCount, Container.TotalRowCount, Container.StartRowIndex + Container.PageSize)) %>' />

  <asp:LinkButton ID="NextButton" runat="server" CommandName="Next"

  Text='<%# (Container.StartRowIndex + Container.PageSize + 1) & " - " & (IIf(Container.StartRowIndex + Container.PageSize*2 > Container.TotalRowCount, Container.TotalRowCount, Container.StartRowIndex + Container.PageSize*2)) %>'

  Visible='<%# (Container.StartRowIndex + Container.PageSize) < Container.TotalRowCount %>' />

  </PagerTemplate>

  </asp:TemplatePagerField>

  </Fields>

  </asp:DataPager>

  <asp:SqlDataSource ID="StoresDataSource" runat="server"

  ConnectionString="<%$ ConnectionStrings:AdventureWorks_DataConnectionString %>"

  SelectCommand="SELECT [CustomerID], [Name] FROM Sales.Store ORDER BY [Name]">

  </asp:SqlDataSource>

  </form>

  </body>

  </html>
